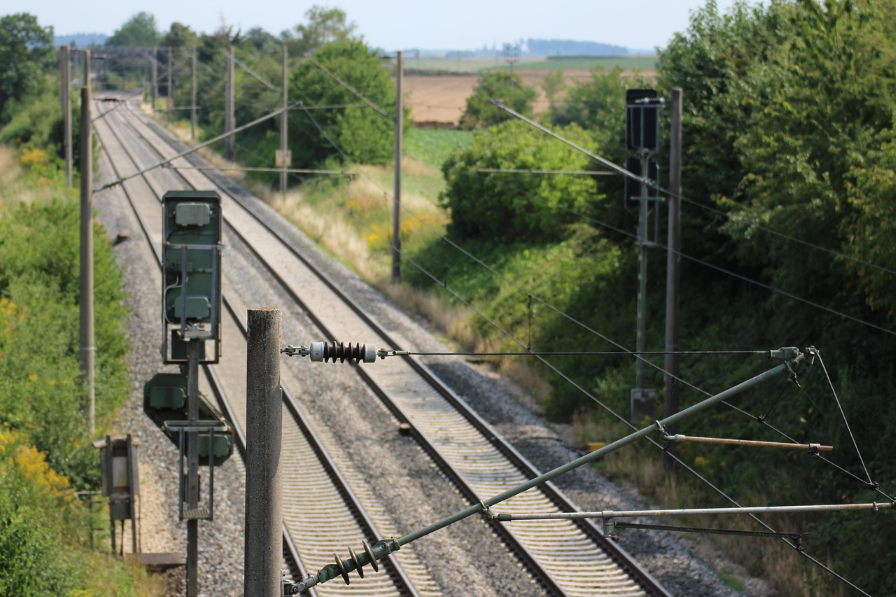

The Overhead Catenary System (OCS) is a critical infrastructure component of electrified railways. This system provides the necessary power to trains through an overhead network of wires and supporting structures. It ensures the efficient and reliable operation of electric trains by delivering consistent electrical energy along the tracks.
The OCS is widely used in urban transit systems, commuter rail networks, and high-speed rail lines, making it a cornerstone of modern rail transportation.
At its core, the OCS is a complex assembly of interconnected components, each playing a vital role in maintaining the system’s functionality and safety. From the overhead wires that carry the current to the supporting structures that ensure stability, every part of the OCS is designed to withstand environmental challenges and the mechanical stresses of daily operation.
In this article, we will explore the key components of the Overhead Catenary System, breaking down their functions, design considerations, and importance in the overall system. Let’s jump right in.
Key Components of an Overhead Catenary System
Let’s break down the various overhead catenary system components and the role they play in the entire system.
1. Contact Wire
The contact wire is the most critical component of the OCS, as it is the direct point of contact with the train’s pantograph. Made of high-conductivity materials like copper or copper alloys, it carries the electrical current needed to power the train.
The contact wire must be durable, wear-resistant, and capable of maintaining consistent contact with the pantograph, even at high speeds. It also requires regular maintenance to prevent surface degradation and ensure smooth current collection.
2. Catenary Wire
The catenary wire, also known as the messenger wire, runs parallel to the contact wire. It provides structural support and is typically made of steel or a combination of steel and aluminum.
The catenary wire maintains the contact wire’s alignment and ensures it remains at the correct height and tension, even under varying environmental conditions.
3. Droppers (Hangers)
Droppers, or hangers, are vertical wires that connect the contact wire to the catenary wire. They are crucial for maintaining the contact wire’s position and ensuring it remains level.
Droppers are usually spaced at regular intervals along the OCS and are designed to withstand mechanical stress while providing flexibility to accommodate movement. They minimize vibrations and oscillations typically caused by the train pantographs.
You can also find these droppers in different types, including simple and adjustable designs.
4. Support Structures
Support structures, such as masts, gantries, and portals, form the backbone of the OCS. These structures are typically made of steel or concrete and are anchored to the ground.
They provide the necessary elevation and stability for the overhead wires to ensure they remain securely in place despite wind, temperature changes, and other external forces.
Here are the different support structures used in the OCS:
- Masts & poles – Vertical structures that support the overhead wires. These are usually made of steel or concrete.
- Portals – Horizontal frameworks used in areas where multiple tracks require overhead wiring.
- Brackets & cantilever arms – Extend from masts to position and stabilize the contact wire.
The spacing and placement of OCS support structures depend on train speed, track layout, and electrical load requirements.
5. Insulators
Insulators are essential for maintaining electrical safety within the OCS. They prevent the flow of electrical current to unintended paths, such as the support structures, which could lead to short circuits or equipment damage.
Insulators are made of materials like porcelain, glass, or composite polymers chosen for their high dielectric strength and durability. They are typically used in suspension systems, anchoring structures, and sectioning points.
6. Tensioning Devices
Tensioning devices, such as automatic tensioners or weights, are used to maintain the correct tension in the contact and catenary wires.
Proper tension is critical to prevent sagging or excessive stretching, which could disrupt the contact between the wire and the pantograph. These devices compensate for temperature-induced expansion and contraction to maintain consistent performance.
There are typically two types of tensioning systems:
- Auto-tensioning systems (constant-tension devices) – These use counterweights or hydraulic systems to adjust tension dynamically. They help the system accommodate temperature-induced expansion and contraction.
- Fixed-tension systems – These are used in short-distance applications where manual adjustments are sufficient.
7. Sectioning and Isolation
Sectioning and isolation components allow the OCS to be divided into manageable segments. This segmentation enables maintenance work to be carried out safely without disrupting the entire system.
Isolation switches and section insulators are used to electrically separate sections. This provides flexibility and enhances system reliability.
Some of the key components used in sectioning and isolation include:
- Section insulators – Electrically separate different sections of the catenary system while allowing uninterrupted mechanical continuity.
- Neutral sections – Installed at substations or junctions to prevent electrical interference when trains switch power zones.
- Overhead switches – Allow railway operators to connect or disconnect sections of the OCS as needed.
Besides maintaining operational flexibility, sectioning and isolation ensure the safety of maintenance personnel.
8. Steady Arms
Steady arms, or registration arms, are horizontal supports that maintain the contact wire’s alignment, especially around curves and switches. They prevent lateral movement of the contact wire, ensuring consistent contact with the pantograph.
Steady arms are typically mounted on the support structures and are adjustable to accommodate different track geometries.
These arms are usually made of galvanized steel or aluminum for maximum durability.
Conclusion
The Overhead Catenary System (OCS) is the backbone of electrified rail transport. This system delivers power to trains through a well-orchestrated network of components. Each component plays a crucial role in keeping trains running safely and efficiently.
This article looked at the eight key components that make up the OCS. These include contact wires, catenary wires, droppers, support structures, insulators, tensioning devices, steady arms, and sectioning and isolations.
As railway infrastructure advances, improvements in materials, automation, and energy efficiency will continue to refine OCS technology to make it even more reliable and sustainable.
